Powder coating is a popular and effective way to polish aluminum profiles, offering a long-lasting, visually appealing, and ecologically responsible surface treatment. The process involves applying a dry powder coating to the aluminum surface, which is then cured at high temperatures to create a strong, uniform finish. In this detailed guide, we’ll go over the entire process of powder painting aluminum profiles, beginning with surface preparation and ending with final inspection.

Surface Preparation

The first and most important phase in the powder coating process is surface preparation. A clean, well-prepared surface is required for effective adhesion and a high-quality finish. The surface preparation process typically consists of the following steps:

Degreasing: The aluminum profiles are immersed in a chemical bath to remove any oil, grease, or other contaminants from the surface. This step is crucial for ensuring that the powder coating adheres properly to the metal.

Etching: The profiles are then subjected to an etching process, which involves immersing them in an acidic solution. This procedure provides microscopic roughness on the aluminum’s surface, which improves the adhesion of the powder coating.

Rinsing: After etching, the profiles are thoroughly rinsed with water to remove any residual chemicals from the surface.

Drying: Finally, the profiles are dried using a hot air blower or in a drying oven to ensure that the surface is completely free of moisture before the powder coating is applied.

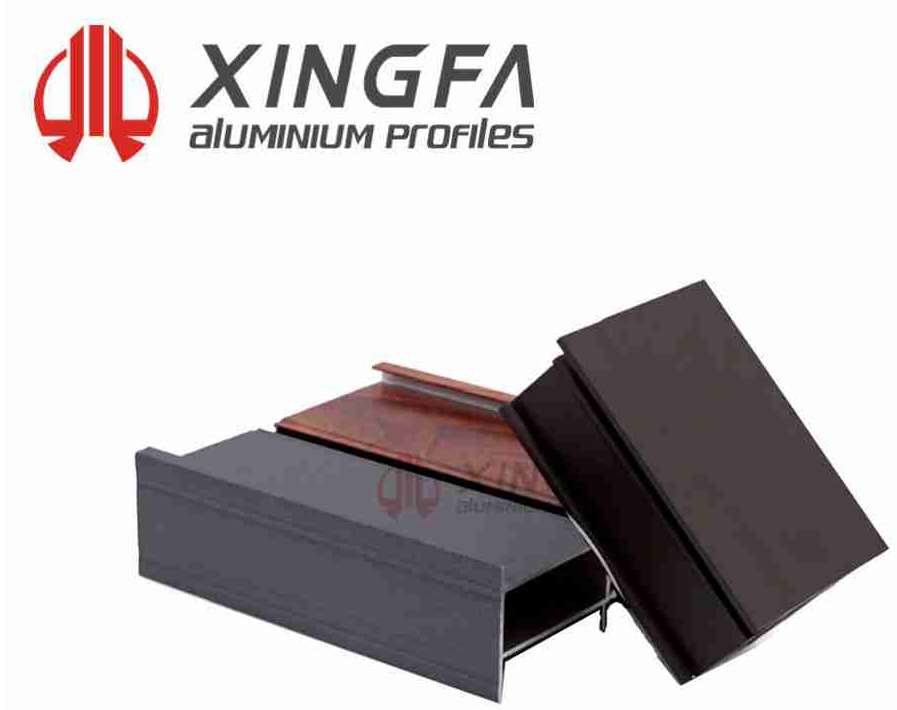

Powder Coated Aluminium Extrusions

Powder Application

Once the surface preparation is complete, the powder coating is applied to the aluminum profiles. This process typically involves the following steps:

Powder mixing: The powder coating is mixed with the desired pigments and additives to achieve the desired color and finish.

Electrostatic spraying: The powder coating is then applied to the profiles using an electrostatic spray gun. The gun applies a negative charge to the powder particles, which are then attracted to the positively charged aluminum surface.

Powder recovery: Any excess powder that does not adhere to the profiles is collected and recycled for reuse, minimizing waste and improving the efficiency of the process.

Curing

After applying the powder coating, the profiles are cured in a high-temperature oven. This step is critical for fusing the powder coating to the metal surface and achieving a strong, long-lasting finish. The curing process typically involves the following steps:

Heating: The profiles are heated to a specific temperature, typically between 350°F and 400°F (177°C and 204°C), depending on the type of powder coating being used.

Melting: As the profiles are heated, the powder coating melts and flows, creating a smooth, even surface.

Curing: The profiles are kept at the curing temperature for a set amount of time, usually between 10 and 20 minutes, to ensure that the powder coating is completely cured and attached to the aluminum surface.

Cooling: After curing, the profiles are allowed to cool to room temperature before being inspected and packaged for delivery.

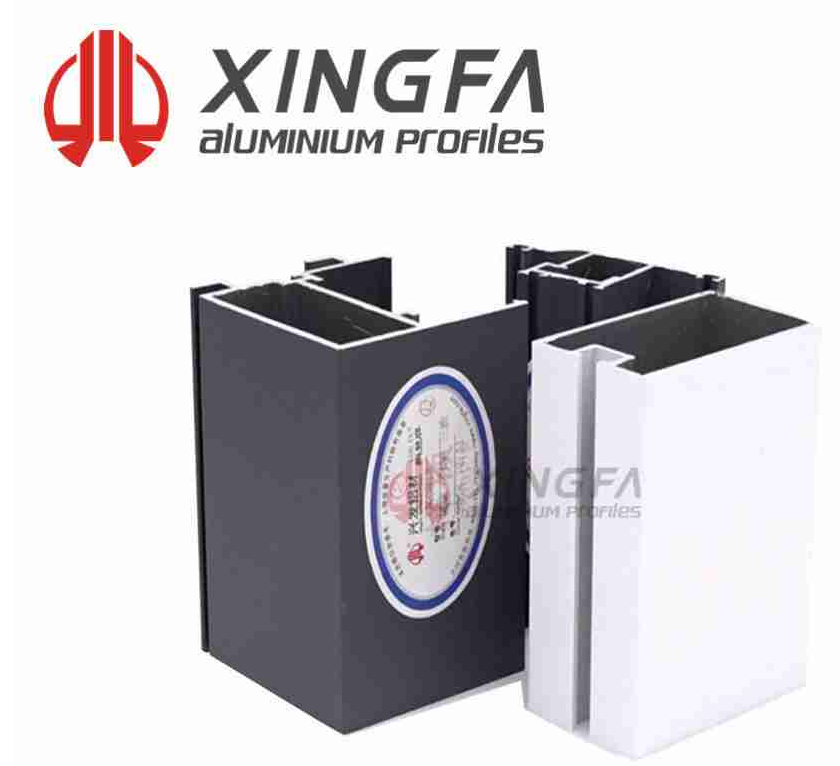

Powder Coated Aluminium Section

Quality Inspection

The final step in the powder coating process is quality inspection. This step ensures that the finished profiles meet all necessary standards and specifications. The quality inspection process typically involves the following steps:

Visual inspection: The profiles are visually inspected for any defects, such as bubbles, pinholes, or uneven coverage.

Thickness measurement: To guarantee that the powder coating fulfills the criteria, its thickness is tested with a specialized device.

Adhesion testing: The adhesion of the powder coating to the aluminum surface is tested using a cross-hatch or tape test to ensure that it meets the required standards.

Gloss measurement: The gloss of the powder coating is measured using a gloss meter to ensure that it meets the required specifications.

Color matching: The color of the powder coating is compared to a reference sample to ensure that it meets the required specifications.

When the profiles pass the quality inspection, they are packaged and dispatched to the customer.

China Aluminum Profile Manufacturers

Advantages of Powder Coating Aluminum Profiles

Powder coating offers several advantages over other finishing methods for aluminum profiles, including:

Durability: Powder-coated aluminum profiles are extremely resistant to wear, scratches, and fading, making them excellent for usage in harsh situations.

Corrosion resistance: The powder coating creates a protective barrier that helps to prevent corrosion and oxidation of the aluminum surface.

Environmental friendliness: Powder coating is a solvent-free process with low waste and emissions, making it an environmentally beneficial way to finish aluminum profiles.

Wide range of colors and finishes: Powder coating is available in a wide range of colors and finishes, allowing for greater design flexibility and customization.

Cost-effectiveness: Powder coating is an inexpensive finishing procedure that may be quickly automated and expanded to suit the demands of large-scale production.

Conclusion

Powder coating is an extremely effective and efficient way of treating aluminum profiles, delivering a long-lasting, appealing, and ecologically friendly surface treatment. If you are looking for high-quality powder-coating aluminum profiles, XINGFA can help you. We are a leading aluminum profile factory with over 40 years of experience. Please choose our products and try the differences today!
